Electrical Systems Design

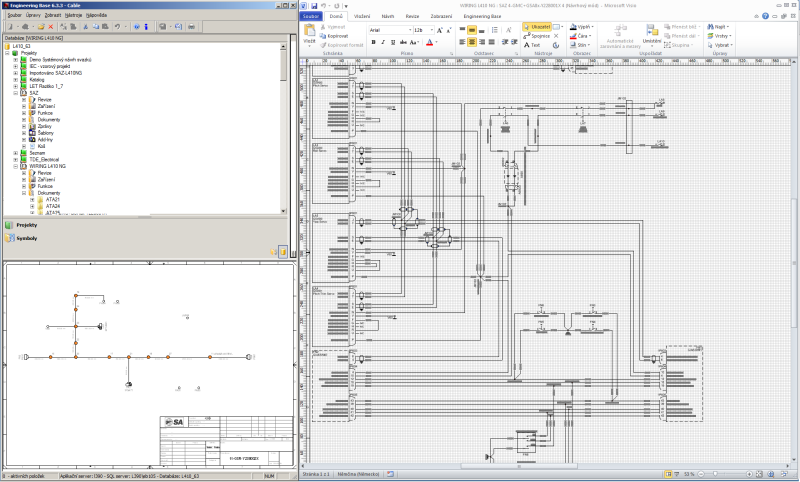

Wiring DIagram in Engineering Base CableSAZ Aerospace s.r.o offers complete engineering services related to implementation of both simple and complex Avionic Systems. The process involves the producing of full nose to tail solutions for the customer including wiring diagrams, harness topology and other technical drawing documentation. We use Engineering Base Cable 6.7.1 for creation and administration of the electrical documentation. In combination with Microsoft SQL Server and Microsoft Visio it creates a powerful and universal database system.Model of the Harness Topology
